New Products
| IoT FEM | ||||
|---|---|---|---|---|
| No | PART NUMBER | DESCRIPTION | KEY FEATURES | |

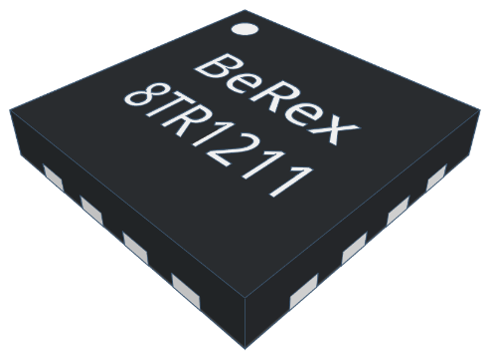

| 1 | 8TR1211 |
|
2.4GHz Bluetooth® Smart Front End RFIC |
•
2.4 – 2.5GHz Frequency Range • High Functionality Front-End RF Integrated Circuit • Integrated PA, Bypass, T/R Switch • Low Current Optimized for Battery Operated IoT • Up to +15dBm P SAT at 3.0V • 23mA at +13dBm Output Power • 1.7dB Bi-Directional Bypass Insertion Loss • Ultra-Compact 2.0 x 2.0 x 0.45mm 3 QFN-16 Package |

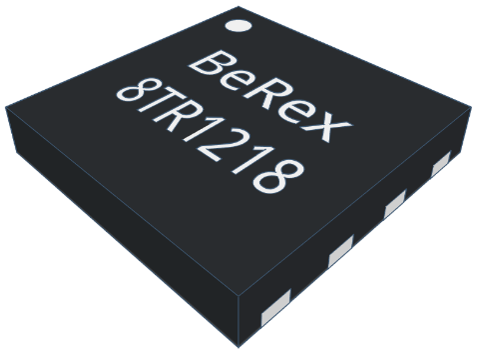

| 2 | 8TR1218 |
|
2.4GHz BLE® / Bluetooth Smart Front End RFIC |
• 2.4 – 2.5GHz Frequency Range • Integrated PA, Bypass, Tx/Rx Switch • Low TX Current for direct battery connection • 24mA at +12dBm Output Power • Up to 6dBm EDR Output Power • Bi-Directional Bypass with Low Insertion Loss • 2.0 x 2.0 x 0.45mm3 DFN package with 0.5mm Pitch |

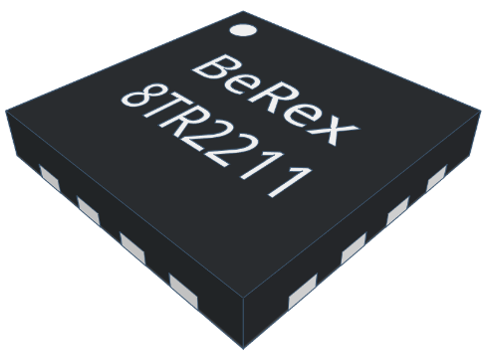

| 3 | 8TR2211 |
|
2.4GHz ZigBee® / Bluetooth® Smart Front End |
• 2.4 – 2.5GHz Frequency Range • Integrated LNA, Transmit/Receive Switch, Bypass, Input / Output Matching • 11dB / 13dB Rx LNA Gain Options • 2dB Noise Figure • 4mA Low Current Rx LNA Mode • 1.8dB Bi-Directional Bypass Insertion Loss • Ultra Compact 2.0 x 2.0 x 0.45mm3 QFN-16 Package |

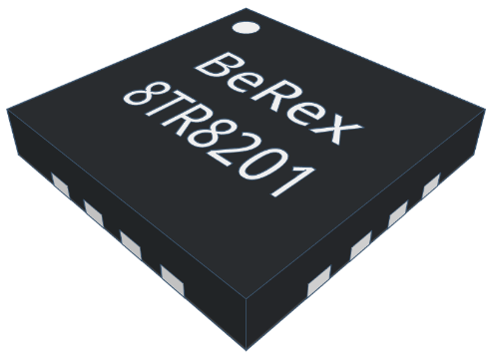

| 4 | 8TR8201 |
|
2.4GHz ZigBee®/ Thread / Bluetooth® Smart Front End RFIC |
• 2.4 – 2.5GHz Frequency Range
• High Efficiency Optimized for Battery Operation • 75mA at +20dBm Output Power at 3.3 V • 2.6dB LNA Noise Figure • Single-Ended Transceiver Interface • 3.0 x 3.0 x 0.45mm3 16-Pin QFN Package |

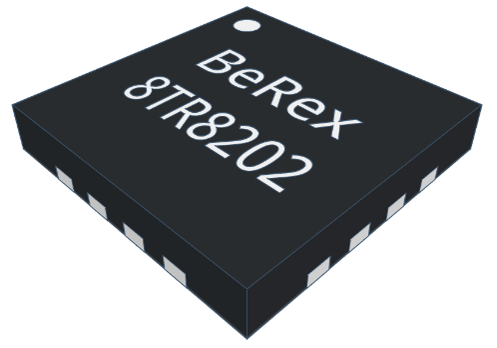

| 5 | 8TR8202 |
|
2.4GHz High Power ISM Front End RFIC |
• 2.4 - 2.5GHz Frequency Range • High Efficiency Optimized for Battery Operation • 105mA at 20dBm, 3.3V • 1.8 - 3.6V Operation • 3dB LNA Noise Figure • Single-Ended Transceiver Interface • 3.0 x 3.0 x 0.45mm3 16-Pin QFN Package |

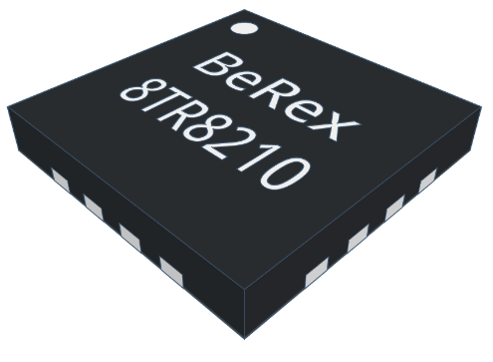

| 6 | 8TR8210 |
|
2.4GHz ZigBee® / Bluetooth® Low Energy Front End RFIC |
• 2.4 – 2.5GHz Frequency Range • PA, LNA, Bypass, T/R Switch • Low Power Consumption • Optimized for Battery Operated IoT • 85mA, +20dBm Saturated Output Power at 3.0V • 2.5 dB LNA Noise Figure • LNA High current/Low NF and Low Current modes • Ultra-Low Shutdown, Bypass Currents • High Directivity Power Detector for Power Control • 3.0 x 3.0 x 0.45mm3 16-Pin QFN Package |

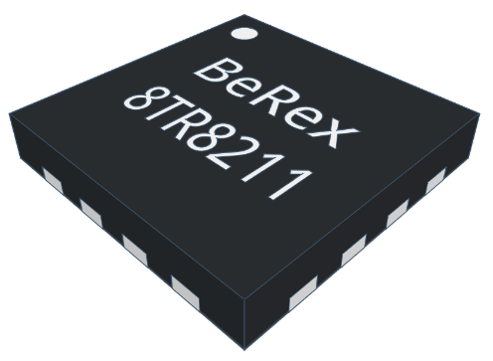

| 7 | 8TR8211 |
|
2.4GHz Bluetooth® Smart Front End RFIC |
• 2.4 – 2.5GHz Frequency Range • High Functionality Front-End RF Integrated Circuit • Integrated PA, LNA, Bypass, T/R Switch • Low Current Optimized for Battery Operated IoT • 23mA at +13dBm Output Power • 2.3dB LNA Noise Figure • Low Bi-Directional Bypass Insertion Loss • Ultra Compact 2.0 x 2.0 x 0.45mm3 QFN-16 Package |

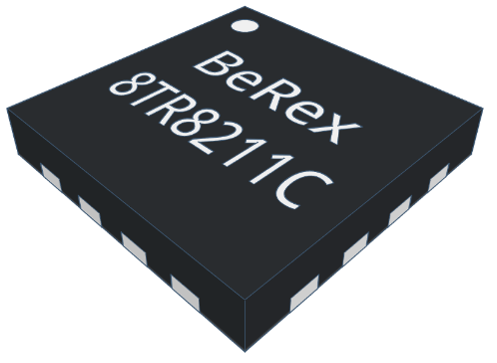

| 8 | 8TR8211C |
|
2.4GHz Bluetooth® Smart Front End RFIC |
• 2.4 – 2.525GHz Frequency Range • High Functionality Front-End RF Integrated Circuit • Integrated PA, LNA, Bypass, T/R Switch • Low Current Optimized for Battery Operated IoT • 15mA at +10dBm Output Power • 3.3dB LNA Noise Figure • Low Bi-Directional Bypass Insertion Loss • Ultra Compact 2.0 x 2.0 x 0.45 mm3 QFN-16 Package |

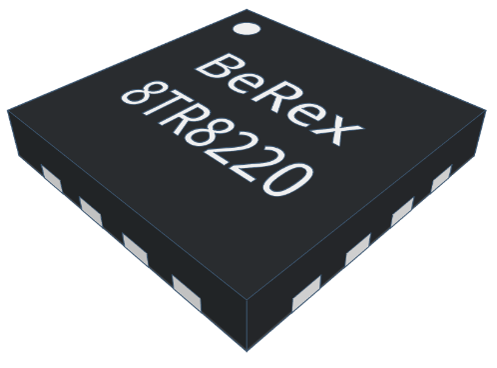

| 9 | 8TR8220 |
|
High Power 2.4GHz ISM, Dual Antenna RFIC |
• 2.4 – 2.5GHz Frequency Range High Efficiency Optimized for Battery Operation • 150mA at +23dBm, 3.3V • 95mA at +20dBm, 3.3V • 2.7dB LNA Noise Figure @ 3.3V • LNA Bypass Mode • LNA Low Current and Low Noise Figure Modes • Integrated PA, LNA, Antenna Diversity Switch • 3.0 x 3.0 x 0.45mm3 16-Pin QFN Package |
| Digital Variable Gain Amplifier | ||||
| No | PART NUMBER | DESCRIPTION | KEY FEATURES | |

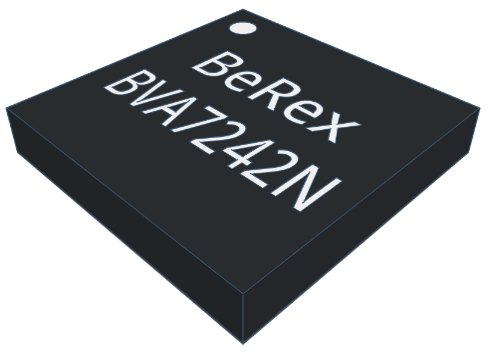

| 1 | BVA7242N |
|
3.0 - 4.2GHz, Flat Gain Digital Variable Gain Amplifier |
• 3.0 – 4.2GHz Frequency Range • Integrated Amplifier1 + DSA + Amplifier2 and Bias circuits • 33.5dB Gain @3.6GHz • A Single Voltage Supply : +5.0V / 165mA • 20dBm Output P1dB @ 3.6GHz • 37.5dBm Output IP3 @ 3.6GHz • ACLR 50dBc ≥ 11dBm @ 3.6GHz, 5G NR 100MBW • Gain Flatness ≤ 1dBpp @ 3.2 - 4GHz, 800MBW • Attenuation Range : 0.25dB Step up to 31.75dB • Program interface : Serial Mode • 28-Pin 6mm x 6mm x 0.95mm LGA Package • Implementation requires only a few external components, such as matching capacitors on input and output pins. (No need DC Blocking Capacitors when DC voltage is not presented.) |

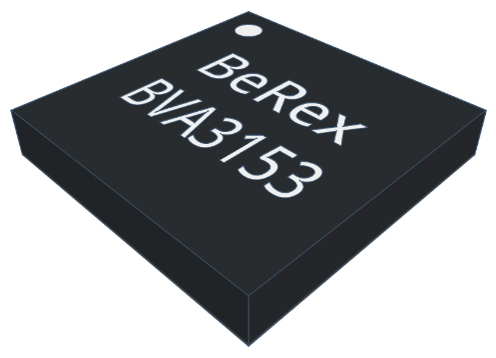

| 2 | BVA3153 |
|
3.6 - 4.2GHz, Medium Power Digital Variable Gain Amplifier |
• 3.6 – 4.2GHz Frequency Range • Integrated Amplifier1 + DSA + Amplifier2 + Amplifier3 and Bias circuits • 38.5dB Gain @3.9GHz • 26.7dBm Output P1dB @ 3.9GHz • 43dBm Output IP3 @ 3.9GHz • ACLR 50dBc ≥ 15dBm @ 3.9GHz, 5G NR 100MBW • Attenuation Range : 0.25dB Step up to 31.75dB • Program interface : Serial Mode • 28-Pin 6mm x 6mm x 0.95mm LGA Package • Pin compatible to BVA3143 and BVA3144 • Implementation requires only a few external components, such as matching capacitors on input and output pins. (No need DC Blocking Capacitors when DC voltage is not presented.) |
| 3 | BVA7202 |
|
0.4 - 1.1GHz, 1/4W Flat Gain Digital Variable Gain Amplifier |
• 0.4
– 1.1GHz Frequency Range • Integrated Amplifier1 + DSA + Amplifier2 and Bias circuits • 33.5dB Gain @0.8GHz • A Single Voltage Supply : +5.0V / 165mA • Gain Flatness ≤ 0.8dBpp @ 0.4 - 1.1GHz, 700MBW • 23.7dBm Output P1dB @ 0.8GHz • 40.5dBm Output IP3 @ 0.8GHz • Attenuation Range : 0.5dB Step up to 31.5dB • Program interface : Serial Mode • 28-Pin 6mm x 6mm x 0.95mm LGA Package • No need matching Block components. If DC is presented at the RF port, add a blocking capacitor. |

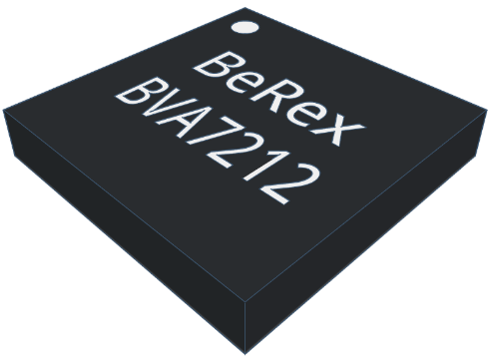

| 4 | BVA7212 |
|
1.4 - 2.3GHz, 1/4W Flat Gain Digital Variable Gain Amplifier |
• 1.4
– 2.3GHz Frequency Range • Integrated Amplifier1 + DSA + Amplifier2 and Bias circuits • 33dB Gain @1.8GHz • A Single Voltage Supply : +5.0V / 180mA • Gain Flatness ≤ 1dBpp @ 1.4 - 2.3GHz, 900MBW • 24dBm Output P1dB @ 1.8GHz • 40.5dBm Output IP3 @ 1.8GHz • Attenuation Range : 0.5dB Step up to 31.5dB • Program interface : Serial Mode • 28-Pin 6mm x 6mm x 0.95mm LGA Package • No need matching Block components. If DC is presented at the RF port, add a blocking capacitor. |

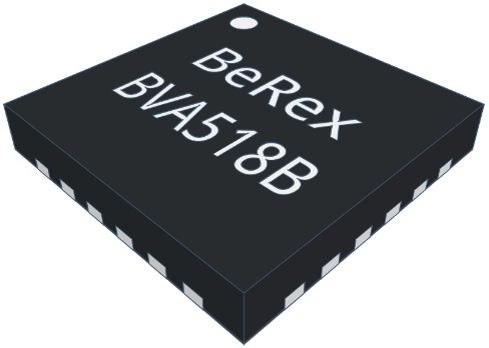

| 5 | BVA518B |
|
5MHz-4GHz, Digital Variable Gain Ampifier |
• Wide Power supply range of +2.7V to 5.5V • Integrate DSA to Amp Functionality • High OIP3 : 32.2dBm @ 1.9GHz • Support variable programming modes : Parallel/Serial • No matching circuit needed • Attenuation: 0.5 dB steps to 31.5 dB |

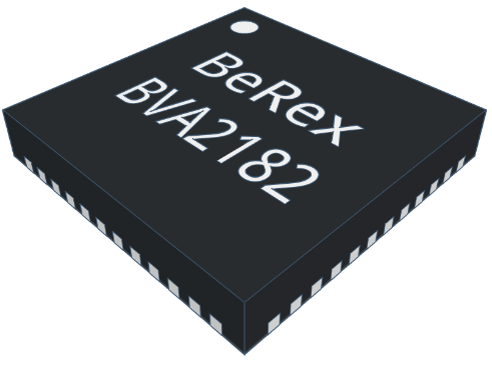

| 6 | BVA2182 |
|
0.5~3GHz, Dual Digital Variable Gain Amplifier |
• Wide Power supply range of +2.7V to 5.5V • Integrates Amp1(Gain Block), DSA1, DSA2 Amp2(Gain Block) Functionality • High OIP3 : 38.2dBm @ 1.9GHz • Attenuation: 0.5 dB steps to 31.5 dB • High attenuation accuracy : (DSA to Amp) ±(1.5dB + 3% x Atten setting) @1.7~2.2GHz • Two Functions application which are Dual channel Application(Tx-Rx) or Single Channel Application(2stage Amp and 2stage DSA ) |
| RF Switch | ||||
| No | PART NUMBER | DESCRIPTION | KEY FEATURES | |

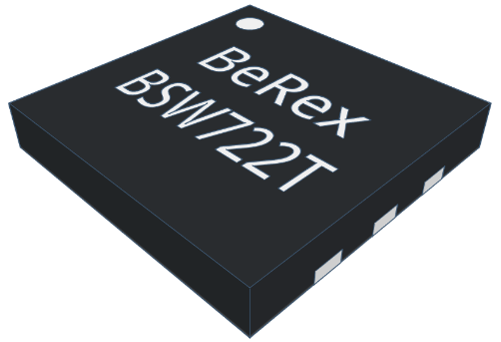

| 1 | BSW722T |
|
5MHz-6GHz, Thin Package SPDT RF switch |
• Low Insertion loss : 0.31dB @ 13.56MHz • High Isolation : 83dB @ 13.56MHz • High IIP3 : 65dBm @ 2.45GHz • Fast Switching Time : 90 to 135 ns • 6-lead xTDFN package : 1.7mm x 1.7mm x 0.37mm • Smart Card • NFC |

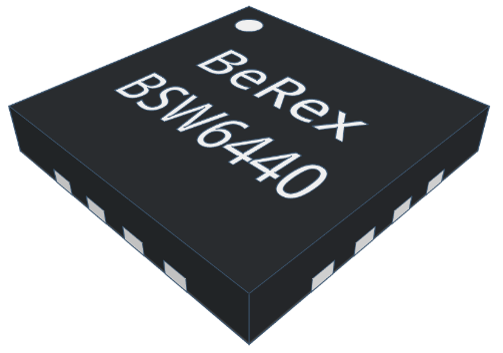

| 2 | BSW6440 |
|
50MHz-6GHz, High Isolation Absorptive SP4T RF Switch |
• Low Insertion Loss : 0.87dB @ 3.5GHz • High Isolation : 39dB @ 3.5GHz (RFC to RFx) : 37dB @ 3.5GHz (RFx to RFx) • High Input 1dB Compression : 40.7dBm @ 3.5GHz • High IIP3 : 62.8dBm @ 3.5GHz • 16-lead TQFN package : 3.0mm x 3.0mm x 0.75mm • Wireless 3G/4G/5G Infrastructure |
| Gain Block | Divider | |||
| No | PART NUMBER | DESCRIPTION | KEY FEATURES | |
| 1 | BGE02 |
|
SOT-363 High OIP3 Gainblock AMP |
• Single Fixed 3.3V Supply • Gain = 17dB @ 3.5GHz • Gain Flatness < 1dB @ 3~4GHz • Output P1 dB = 17.7 dBm @ 3.5GHz • OIP3 = 34.5dBm @ 3.5GHz • Internally matched to 50 ohms • Lead-free/RoHS-compliant SOT-363 SMT package |
| 2 | BBA03 |
|
30M~ 6GHz Gain Flatness BroadBand AMP |
• Gain = 14.7 dB @ 900MHz • OIP3 = 39.7 dBm @ 900 MHz • Output P1 dB = 20.5 dBm @ 900 MHz • N.F = 1.85dB @ 900 MHz • Internally matched to 50 ohms • Lead-free/RoHS2-compliant SOT-89 SMT package |
| Divider | ||||
| No | PART NUMBER | DESCRIPTION | KEY FEATURES | |

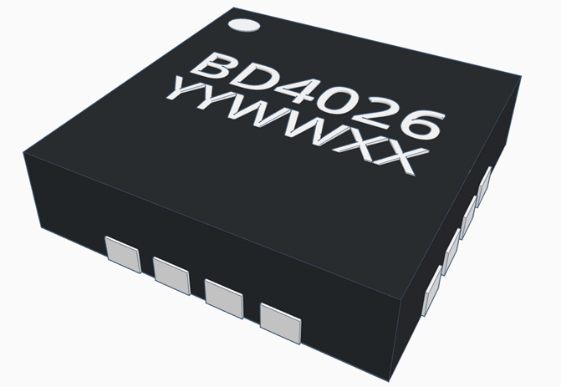

| 1 | BD4026 |
|
WideBand 2-Way SMT Power Divider |
• Typical Isolation = 25.6 dB @ 2.1GHz • Typical Insertion Loss = 0.7 dB @ 2.1GHz • MSL 3 moisture rating • RoHS2-compliant 16LQFN 3x3 Plastic Package |
| Low Noise Amplifier | ||||
| No | PART NUMBER | DESCRIPTION | KEY FEATURES | |
| 1 | BNT21 |
|
50-6000 MHz BroadBand AMP |
• Gain = 18.0 dB @ 3500MHz • OIP3 = 37.4 dBm @ 3500MHz • Output P1 dB = 19.2 dBm @ 3500 MHz • N.F = 1.5dB @ 3500MHz • Internally matched to 50 ohms • Fast shut down to support TDD systems • Green/RoHS2 Compliant DFN 8L 2x2 Package+11:30 |
